GuideIR TA435 Thermal Imaging Clip-On

$3,599.00

Application field： Search and RescueLaw enforcementPersonal Vision SystemOutdoor recreation

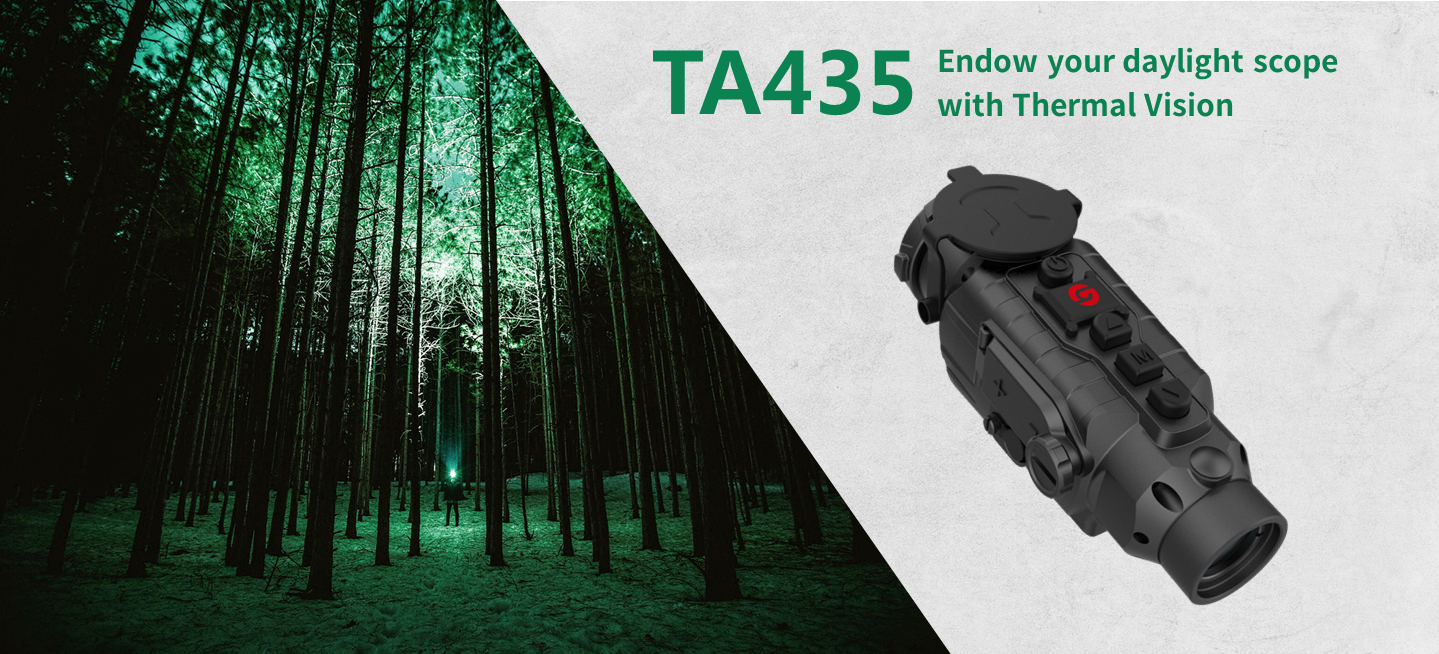

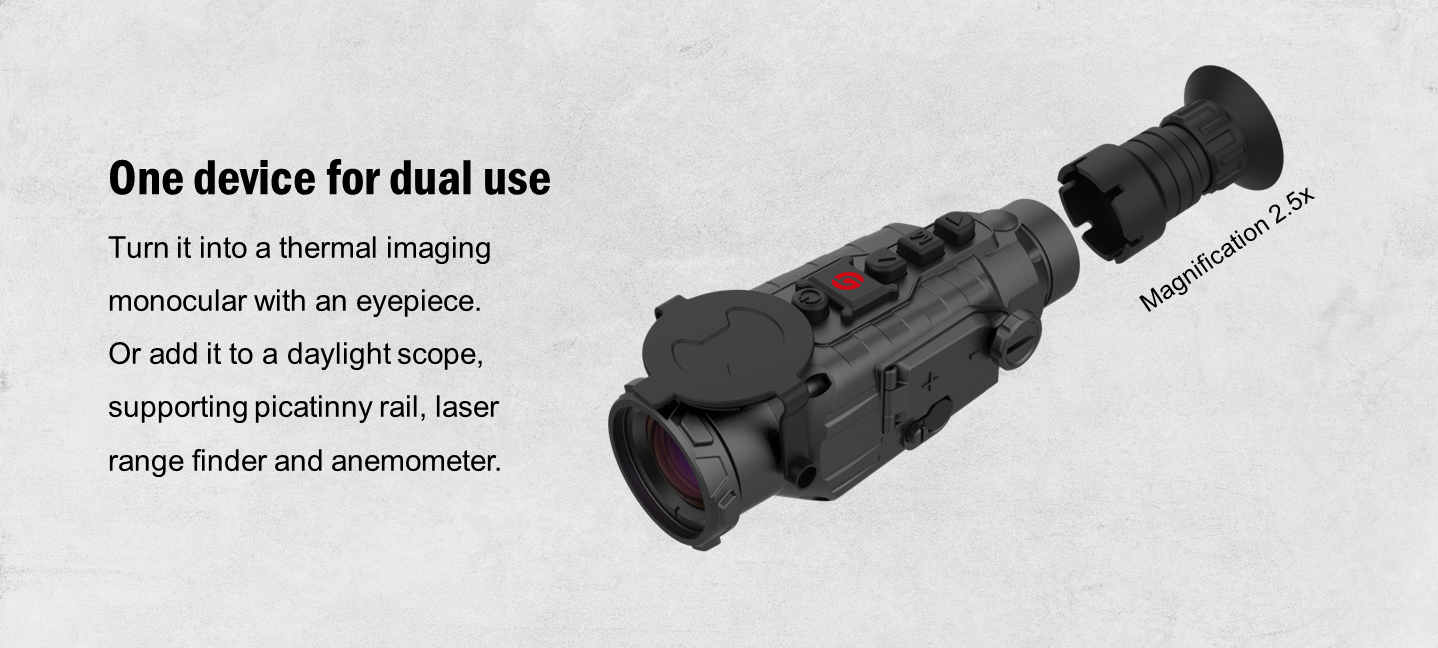

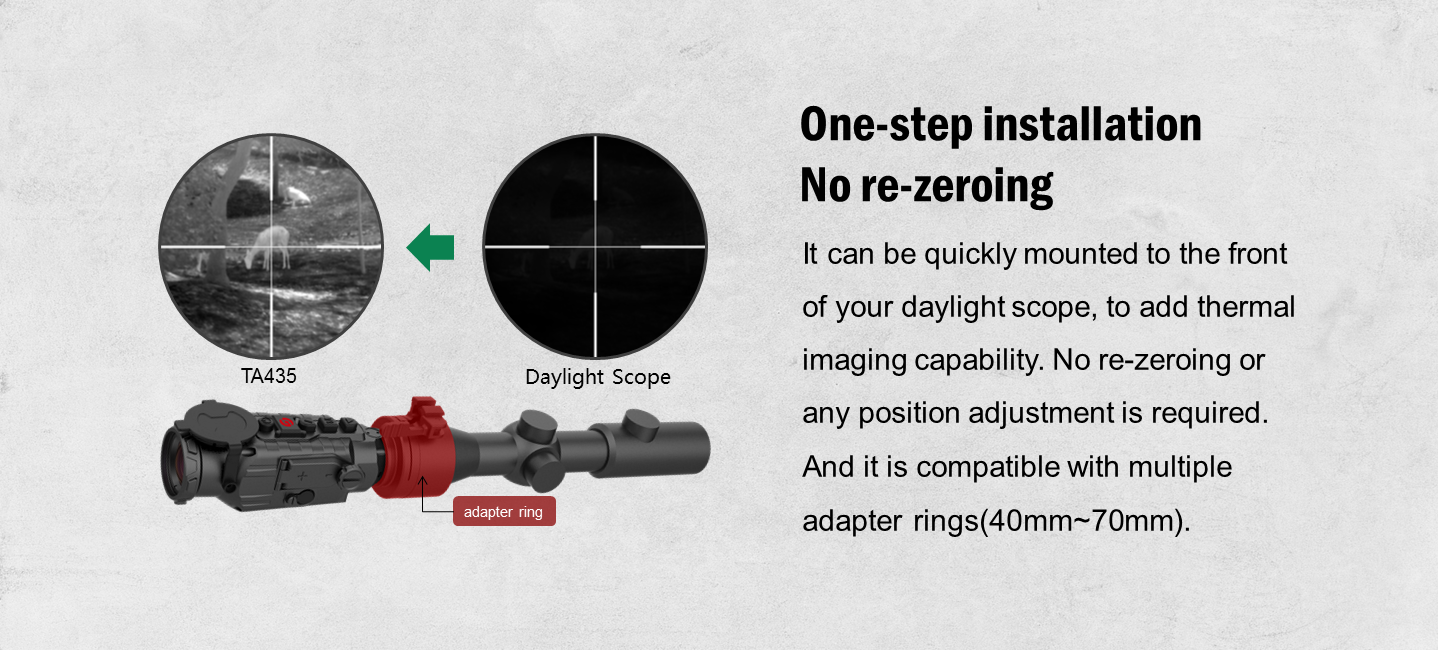

TA435 is a fashion items with multiple functions. Take it as a thermal imaging attachment adding thermal imaging capability to your scope, or as a portable thermal imaging monocular. This compact, lightweight and durable device can be quickly mounted and dismounted without re-zeroing, providing excellent image in various environments.
SKU: TA435 Categories: ,

Description

TA435 Thermal Imaging Attachment 1.png

TA435 Thermal Imaging Attachment 2.png

TA435 Thermal Imaging Attachment.jpg

TA435 Thermal Imaging Attachment 3.png

TA435 Thermal Imaging Attachment 4.png

TA435 Thermal Imaging Attachment 5.png

TA435 Thermal Imaging Attachment 6.png

TA435 Thermal Imaging Attachment 7.png

TA435 Thermal Imaging Attachment 8.png

TA435 Thermal Imaging Attachment 9.png

TA435 Thermal Imaging Attachment 10.png

TA435 Thermal Imaging Attachment 11.png

TA435 Thermal Imaging Attachment 12.jpg







Specifications

Detector
Resolution 400×300@17μm
Spectral Range 8μm～14μm
NETD ≤50mk@25℃   /F1.0
Focus   lens
Focal Length 35mm   F1.2
Focusing Manual   focus
FOV 10.66°×8.0°
Image   Processing
Frame Rate 50Hz（PAL）/60Hz（NSTC）
Digital Zoom 2×、4×
Auto Tracking Hotspot   track
Calibration Automatic   calibration/ Manual calibration (shutter) /Manual scene compensation

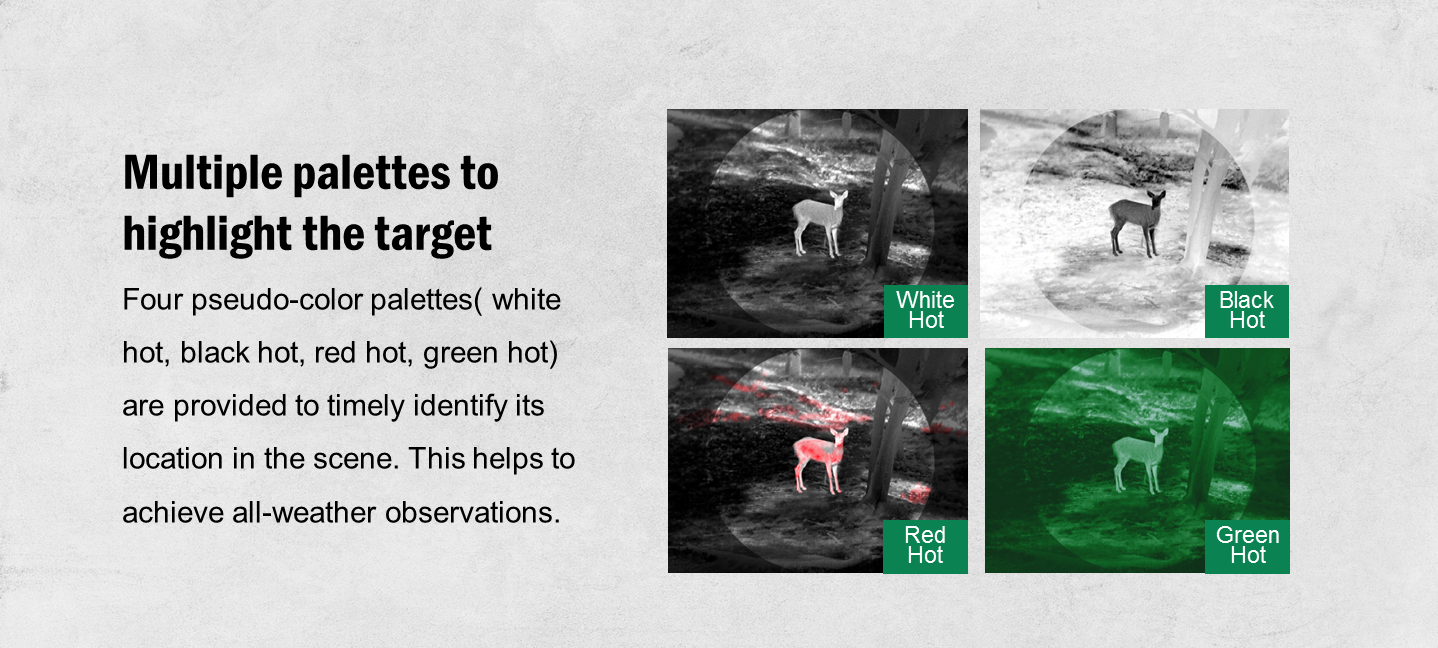

Color Palettes Black   hot, white hot, red hot, green hot
Contrast/Brightness Adjustable
Power   Systems
Battery CR123A×2/ICR16340×2
Charging On   External charger
Working Time Continuous   Operating over 3 hours@25℃
Interface
4-Pin LEMO Interface Analog&video   output
Display   system

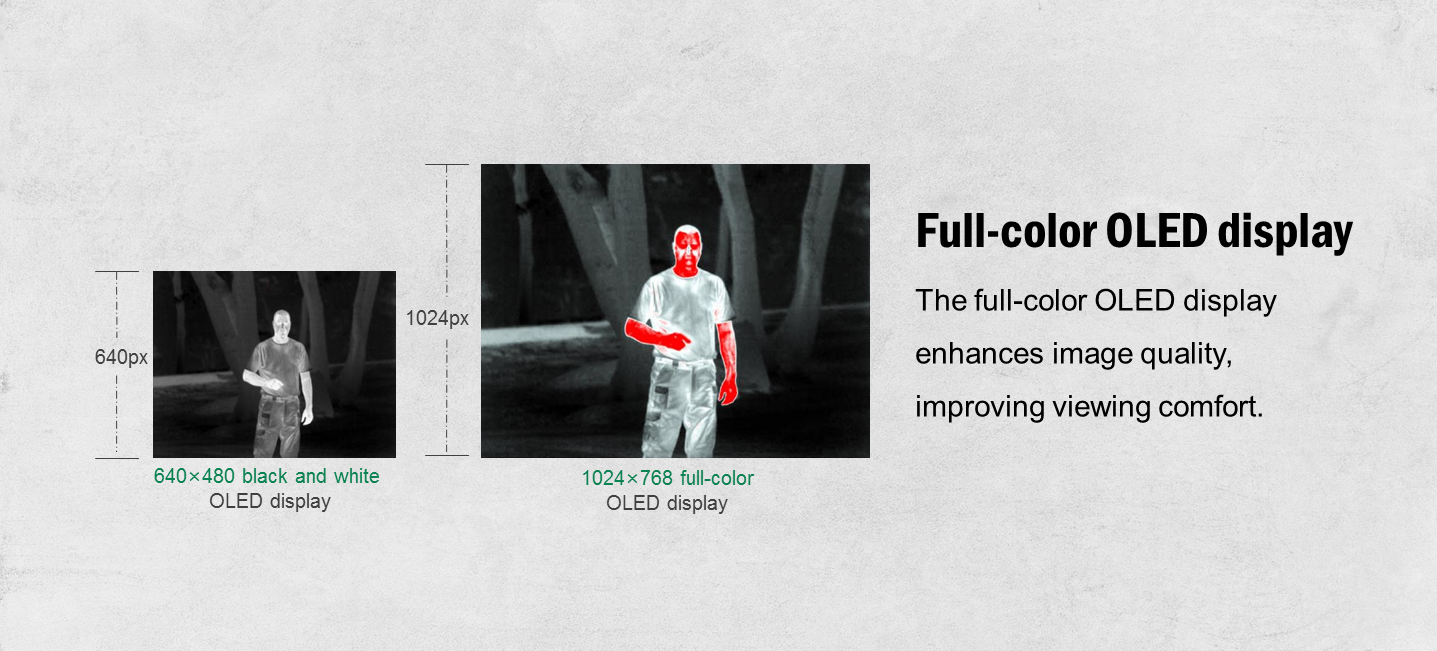

OLED Colorful   0.39 inch OLED screen 1024×768
Pupil Distance 10mm
Pupil Caliber 20mm
Video Format PAL/NTSC
Digital Zoom 1
View Finder Monocular   display(×2) ±5 adjustable diopter
Environment   parameter
Operating Temperature -30℃-50℃
StorageTemperature -45℃-70℃
Humidity Working   and storage10% ～ 95%, Non condensing
Impact 500G/1ms
IP level IP67
Certificate RoHS   Certificate/CE Certificate/FCC Certificate
Physical   Characteristics

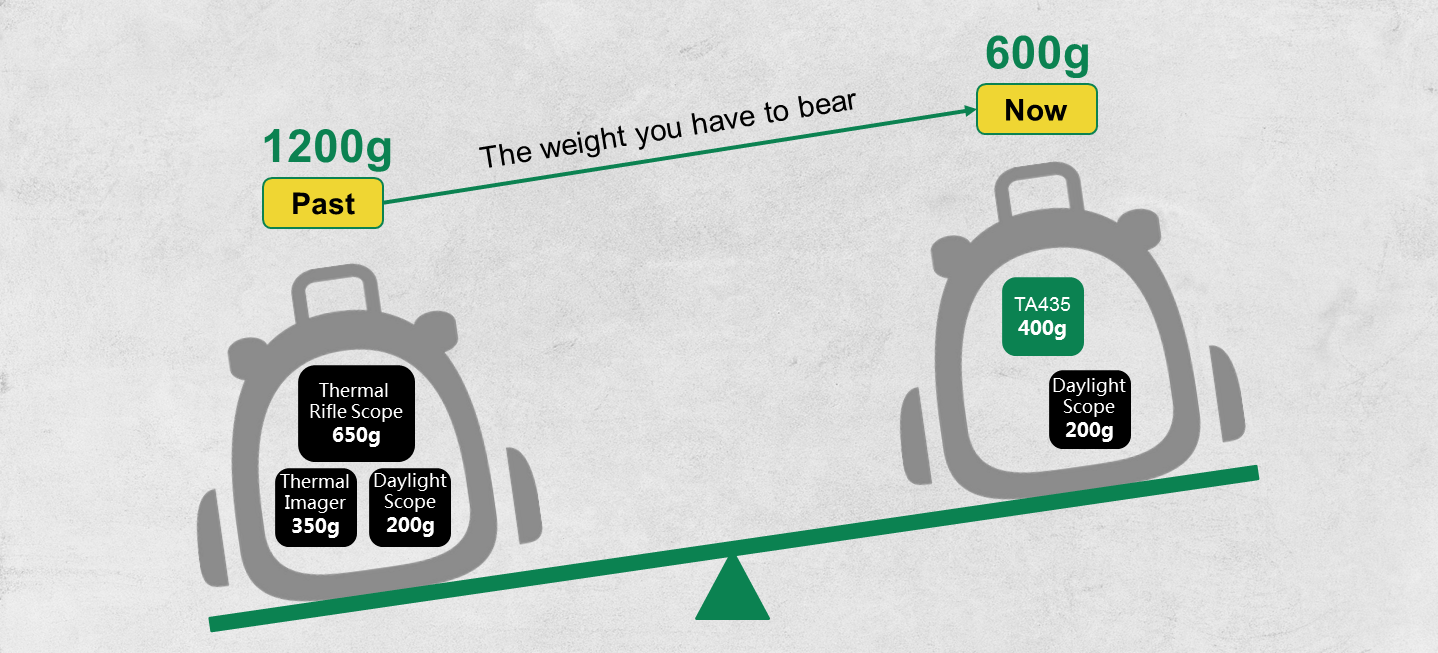

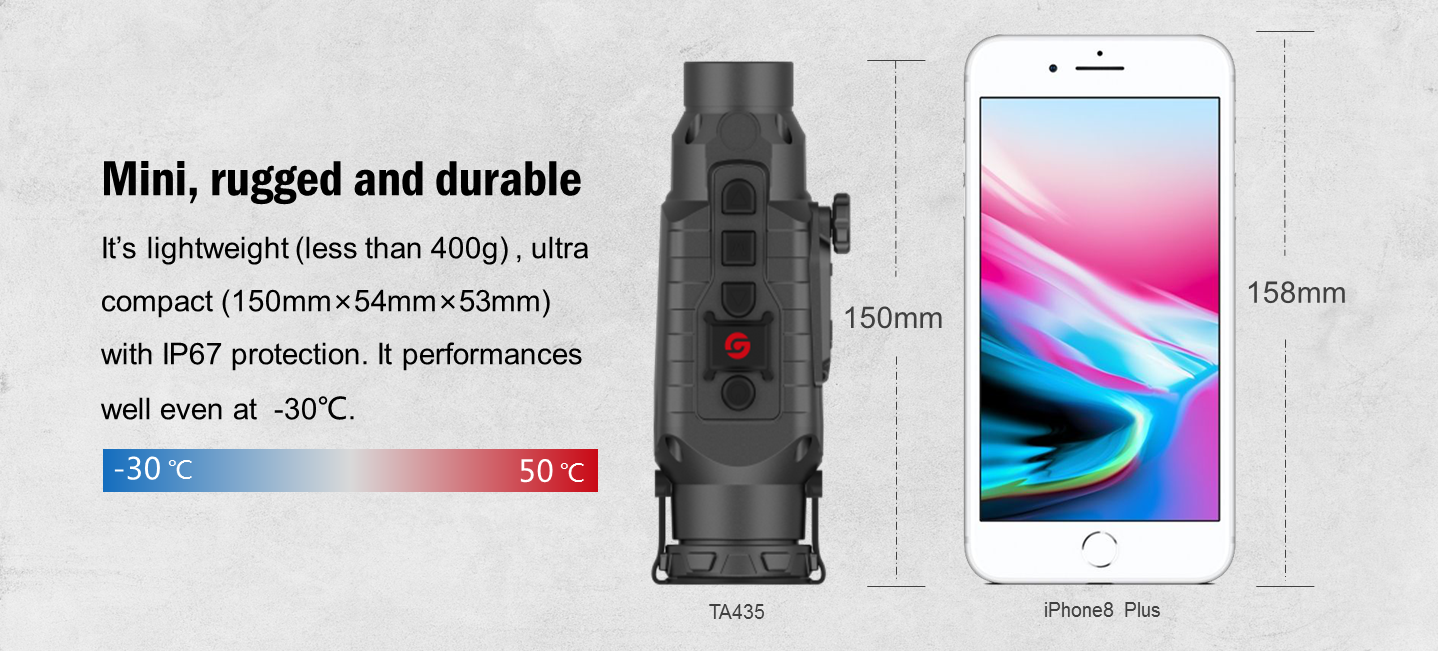

Weight ≤400g
Size 150mm×52mm×57mm
Package
Standard Thermal   infrared imager/User manual/Blinder/Warranty
Optional Adapter   ring/External eyepiece/

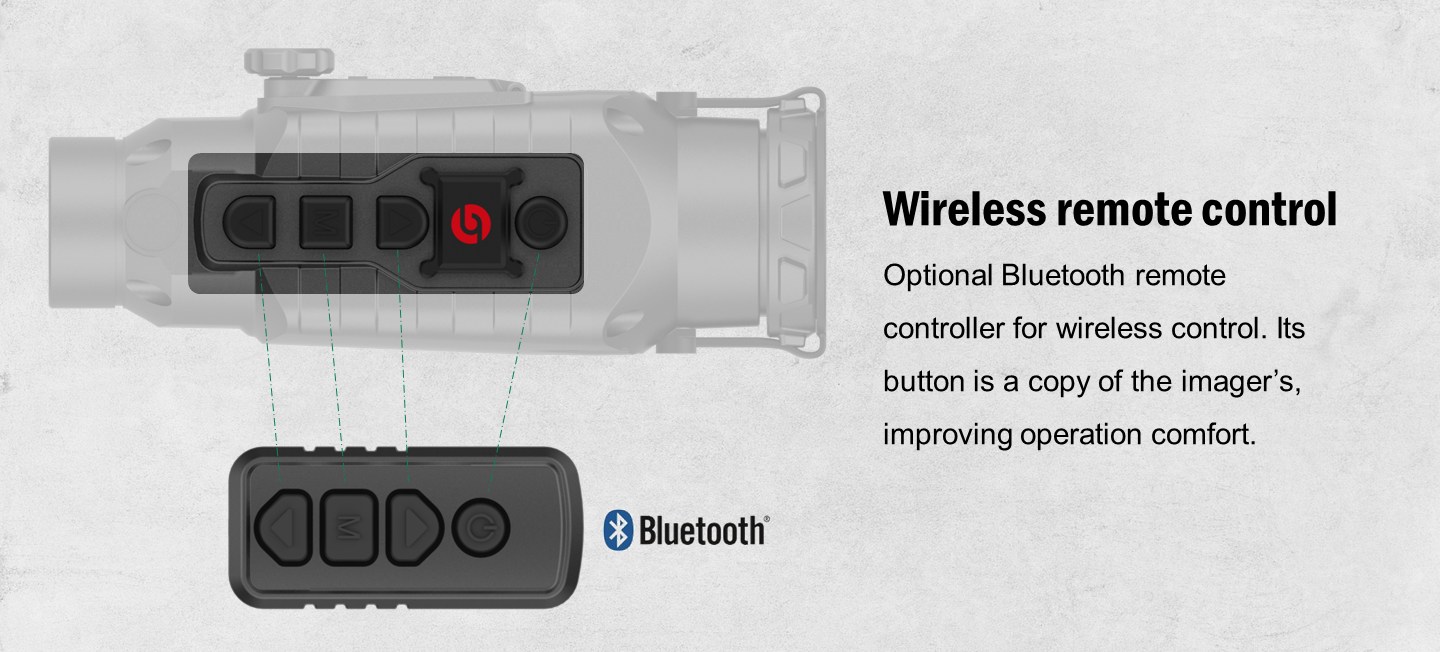

CR123A×2(unrechargeable)battery/ICR16340×2(rechargeable)   battery/Charger/Bluetooth remote controller/Lemo video cable/Picatinny   rail
Cover ring adapterA：Compatible with   38/40/42/44/46mm;
Cover ring adapterB：Compatible with   48/50/52/54mm;
 Cover   ring adapterC：Compatible with 56/58/60/62/64mm;

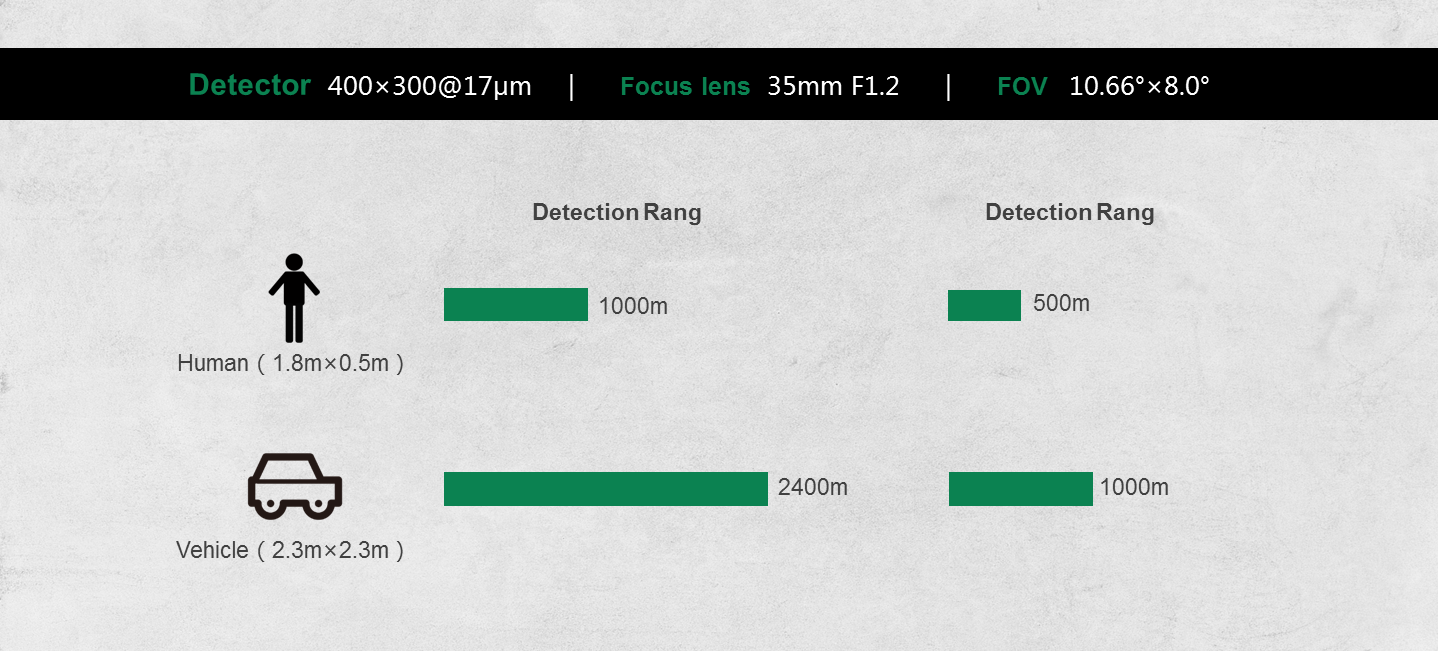

Detection   Range
Human：1.8m×0.5m 1000m
Vehicle：2.3m×2.3m 2400m
Recognition   Range
Human：1.8m×0.5m 500m
Vehicle：2.3m×2.3m 1000m
